 SPARTA  EMULSION LOADER

The SPARTA Underground Emulsion Loader is designed for safe, efficient, and reliable explosive loading in underground mining environments. Engineered with a heavy-duty construction frame and four-wheel-drive articulated steering, it offers exceptional maneuverability and stability in confined headings. Built to handle harsh conditions while maintaining precision and control, the SPARTA Emulsion Loader ensures consistent emulsion delivery and dependable operation. Its rugged design is complemented by an emphasis on operator safety and comfort, with features such as a ROPS/FOPS-certified canopy, suspension seat, and optional enclosed environmental cab.

Interested in underground mining equipment, parts, or services?

UNDERGROUND FLAT DECK TRUCK FEATURES

Powered by a Cummins Tier 3 diesel engine paired with a DANA 20000 series transmission, the SPARTA Emulsion Loader delivers robust and reliable performance underground. The unit weighs 16,873 kg (37,200 lbs), with a tramming height of 2.55 m, width of 2.56 m, and length of 10.92 m, supported by SAHR axles and 12.00–20 pneumatic tires. The integrated emulsion delivery system features a complete stainless steel design, chassis grounding, and a transmission lockout for safe ANFO operation. Additional features include a 24V electrical system, ABA brake system, LED lighting with strobe, audio backup alarm, and certified ANSUL six-nozzle fire suppression system. With its two-stage telescopic boom, 7-metre arm extension, and 485-lb (220-kg) man basket, the SPARTA Emulsion Loader combines strength, safety, and functionality, making it a dependable solution for underground explosive loading and support operations.

DIMENSIONS

Underground Flat Deck Dimensions

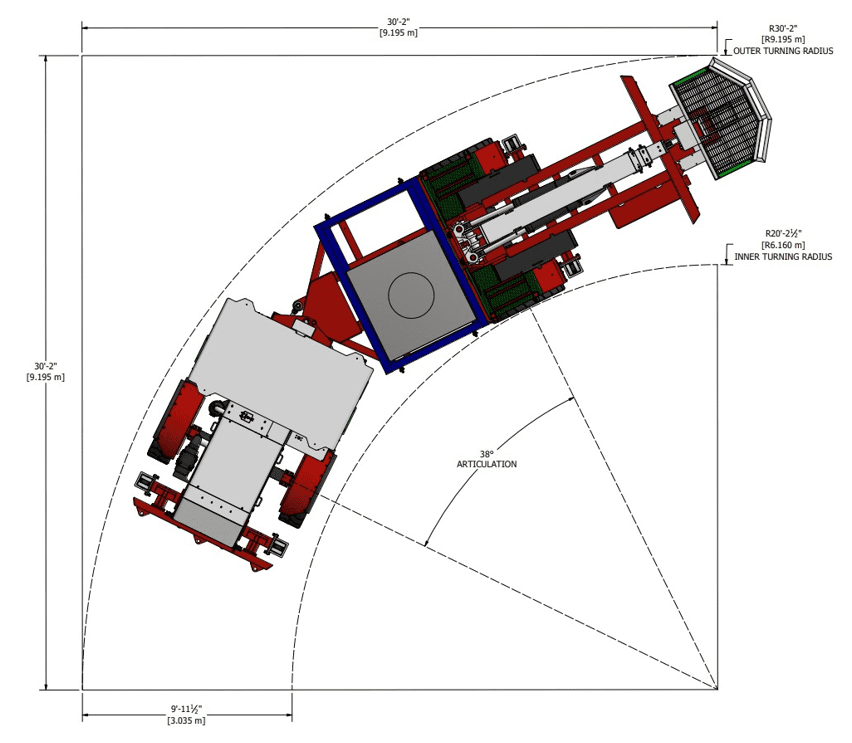

MANEUVERABILITY

Underground Flat Deck Maneuverability

Interested in underground mining equipment, parts, or services?

TECHNICAL SPECIFICATIONS

ITEMSPECIFICATIONS
Engine:Cummins Tier 3
Transmission:DANA 20000 series

Axles:Spring Applied Hydraulic Release (SAHR)
Empty Weight:16,873 kg (37,200 lbs.)
Tramming Height:2.55 m (101″)
Width/ Length:2.56 m (101″) / 10.92 m (430″)
Inside Turning Radius:6.16 m (242″)
Outside Turning Radius:9.19 m (362″)

Tires:12.00-20 (Pneumatic)

Electrical:24V electrical system
 ABA brake system
 Audio back up alarm
 Engine oil pressure switch
 LED lighting installed
Lock out on master switch

Frame Unit:Heavy duty construction frame
 Four-wheel drive, articulated steer carrier
 ROPS/ FOPS canopy
 Fire extinguisher 20lbs
 Grounding straps throughout frame
 Two small Antistatic storage boxes with rubberized spray
 One suspension seat
 Two front and two rear stabilizers
Articulated carrier

Fire Suppression:Certified ANSUL 6 Nozzle

Other:1 electronic version manual

Telescopic Man Basket:Two stage telescopic boom with man basket 485 Lbs. (220 Kg)
 Arm extension 7 m.
 Retracted arm length: 14 ft (4.27 m)
 Boom coverage: 20.8 ft x 24 ft (6.3 m x 7.3 m)
 Arm lift: + 50 ° / -15 °
 Basket dimensions: 1.42 m x 0.71 m (56″ x 28″)
 Max capacity of the basket: 220 kg (485 lbs.)
 Self-Leveling Basket
 Remote controls in basket and chassis
 Two (2) Work lights on the Chassis
 Whisker switch
 Bolt on canopy included
 Men basket emergency descent function

Emulsion Delivery System:

 Lock transmission system while operating ANFO (Air Compressor and arm)
 Chassis ground
 Complete stainless steel delivery system
