UCT

PRIME MOVE UNDERGROUND CASSETTE TRUCK

The SPARTA Underground Cassette Truck is a versatile, multi-purpose carrier designed to perform multiple underground mining functions through its interchangeable cassette system. Built on a heavy-duty articulated frame, the truck can quickly adapt to a variety of tasks by swapping out specialized cassettes, including a flat deck cassette for material transport, a fuel and lube cassette for servicing equipment, and a personnel carrier cassette for safe crew transport. This modular approach maximizes productivity, reduces downtime, and minimizes the need for multiple dedicated vehicles. Engineered for durability, stability, and ease of operation, the SPARTA Cassette Truck provides a cost-effective and flexible solution for efficient underground mine operations.

Interested in underground mining equipment, parts, or services?

UNDERGROUND CASSETTE TRUCK FEATURES

Powered by a Volvo Tier 3 engine coupled with a DANA 32000 series transmission, the SPARTA Cassette Truck provides reliable performance with four-wheel drive, articulated steering, and SAHR axles for superior control and braking. The unit has an empty weight of 10,432 kg (23,000 lbs), a tramming height of 2.56 m, and overall dimensions of 2.46 m wide by 7.94 m long, with turning radii of 6.1 m inside and 9.06 m outside. It features a 24-volt electrical system, ABA brake system, LED lighting, white strobe light, and audio backup alarm for enhanced safety and visibility. Operator protection is ensured with a ROPS/FOPS canopy, suspension seat, and a certified ANSUL four-nozzle fire suppression system. Rugged, adaptable, and efficient, the SPARTA Cassette Truck serves as the foundation for a complete line of interchangeable underground utility vehicles.

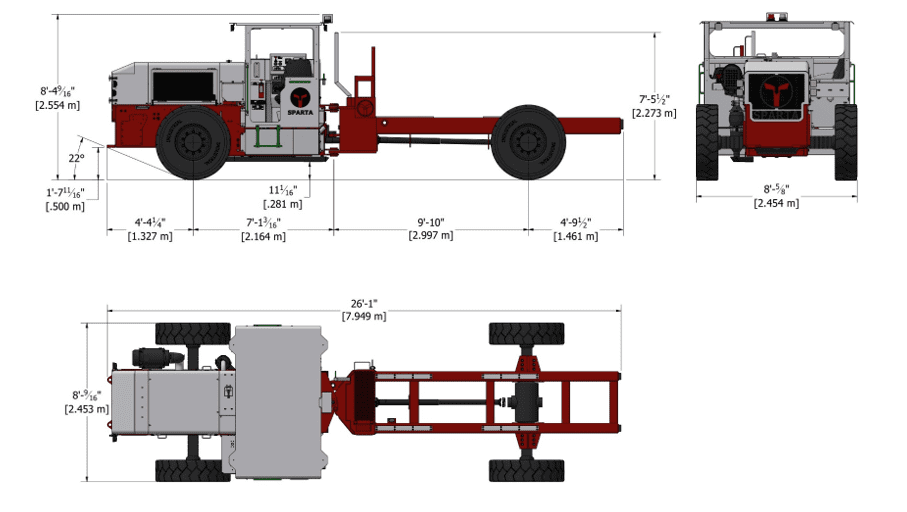

DIMENSIONS

Underground Flat Deck Dimensions

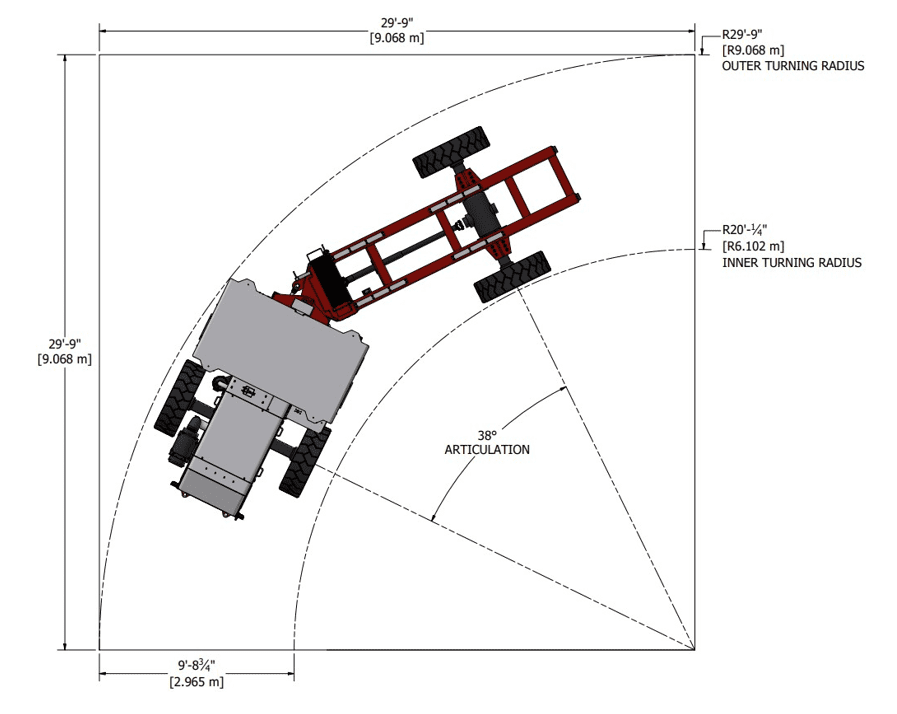

MANEUVERABILITY

Underground Flat Deck Maneuverability

Interested in underground mining equipment, parts, or services?

TECHNICAL SPECIFICATIONS

Engine:Volvo Tier 3
Transmission:DANA 32000 series

Axles:Spring Applied Hydraulic Release (SAHR)
Empty Weight:10,432 kg (23,000 lbs.)
Tramming Height:2.56 m (101″)
Width/Length:2.46 m (97″) / 7.94 m (313″)
Inside Turning Radius:6.1 m (240″)
Outside Turning radius:9.06 m (357″)

Tires:12.00-20 (Pneumatic)

Electrical:24V Electrical System
 ABA Brake System
 Audio Back Up Alarm
 Engine Oil Pressure Switch
 LED Lighting Installed
 Lock Out on Master Switch
 Strobe Light (White Included)

Frame Unit:Heavy Duty Construction Frame
 Four Wheel Drive, Articulated Steer Carrier
 ROPS/FOPS Canopy
 One Suspension Seat

Fire Suppression:Certified ANSUL 4 Nozzle

Other: 1 Electronic Version Manual
 Fire Extinguisher 20 lbs.
