UWT

 SPARTA UNDERGROUND WATER TRUCK

Our SPARTA Underground Water Trucks are designed for durability in harsh mining conditions. The SPARTA UWT is engineered for multiple applications and delivers features and performance benefits on which you can depend. Customizable to your specific requirements, our SPARTA Water Trucks are manufactured for the rugged underground terrain and can be relied on to keep your fleet of mining vehicles in high production.

Interested in underground mining equipment, parts, or services?

UNDERGROUND WATER TRUCK FEATURES

The SPARTA Water Truck is built with a heavy-duty construction frame. The standard engine is a Cummins QSB 4.5 Diesel (130 hp), Tier 3 w/ Dana 20000 transmission. Other features include 4-wheel drive and articulated steer carrier, ABA brake system, audio back up alarm, led lighting and strobe lights, and a 24V electrical system. An enclosed environmental cab for operator and passenger (AC w/ heat), is also available.

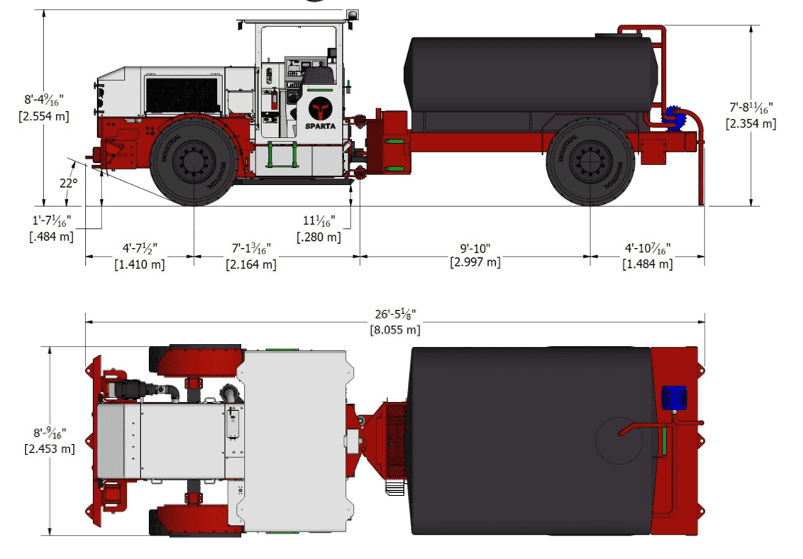

DIMENSIONS

Underground Water Truck Mines Dimensions

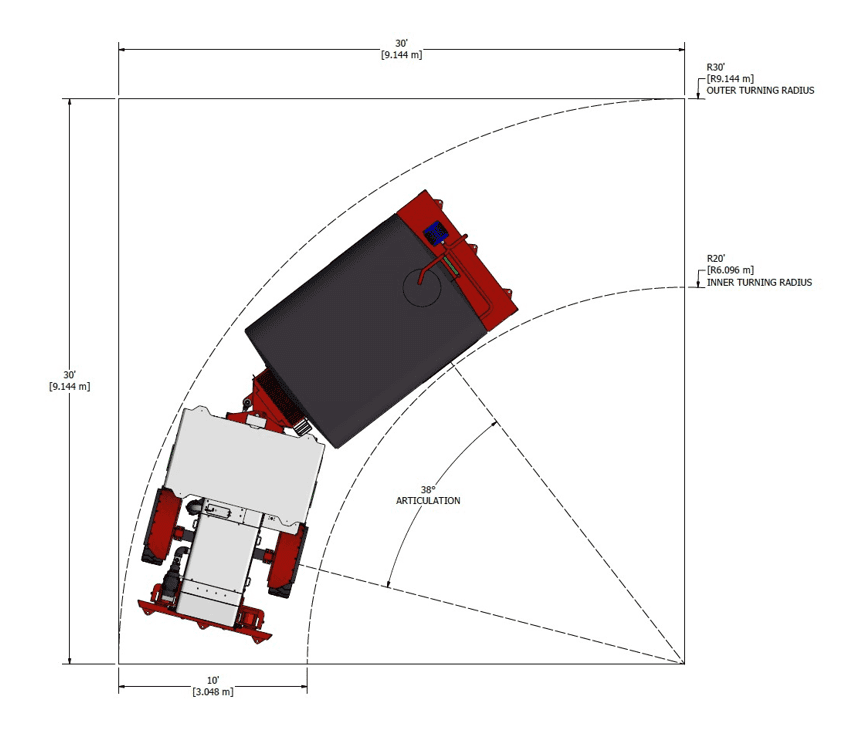

MANEUVERABILITY

Underground Water Truck Maneuverability

Interested in underground mining equipment, parts, or services?

TECHNICAL SPECIFICATIONS

Engine:Cummins QSB 4.5 Diesel (130 hp), Tier 3 w/ Dana 20000 transmission
Mercedes 904 Diesel (148 hp), Tier 3 w/ Dana 20000 transmission
Cummins QSB6.7 Diesel (193 hp), Tier 3 w/ Dana 32000 transmission
Mercedes 906 Diesel (201 hp), Tier 3 w/ Dana 32000 transmission
Transmission:DANA 20000 series
DANA 32000 series
 Water Capacity:TBD
Axles:DANA 113 SAHR
Empty Weight:16,347 kg (36,150 lbs)
Fire Suppression System:Certified ANSUL 4 Nozzle, liquid
Tramming Height:2.36 m (93″)
Width/ Length:2.44 m (96″) / 7.87 m (310″)
Inside Turning Radius:6.13 m (241″)
Outside Turning Radius:8.99 m (354″)
Tires:12.00-20
      – Pneumatic
      – Foam Filled
      – Solid
Spare Tire:      – Pneumatic
      – Foam Filled
      – Solid
Electrical:24V electrical system
ABA brake system
Audio back up alarm
Engine oil pressure switch
LED lighting installed
Lock out on master switch
Strobe light (red, white, blue, amber)
Wheel chocks and brackets
Frame Unit:Heavy duty construction frame
Four wheel drive, articulated steer carrier
Passanger seat
ROPS/ FOPS canopy
Spare tire included
3 sets of manuals with electronic version
Fire extinguisher
Grounding straps
Options:Enclosed environmental cab for operator (AC w/ heat)
Enclosed environmental cab for passengers (AC w/ heat)
Central lubrication system (Lincoln)
Electric fill pump c/w filters
Wiggins fast fill fuel system
ANSUL “Check fire” with detection system
Air ride seats (Qty 2)
Seat belt warning system
Electric fill pump c/w filters
Hydraulic low level warning light
Exhaust shielding options (Firwin / Mammoth)

SPARTA WATER TRUCK DOWNLOADS

Below you can download the brochure and and specifications for our standard underground water truck. If you have any special requirements or customization needs, please reach out for additional information.
