SPARTA UNDERGROUND MAN CARRIER
Our SPARTA line of safe and comfortable underground man carriers are engineered specifically to handle the rough road conditions of underground mines. The robust design and durable construction will ensure that personnel get to and from work places reliably. And though our SPARTA man carrier features heavy-duty construction, it is also equipped for operator comfort, including, heating and air conditioning, as an additional option.
UNDERGROUND MAN CARRIER FEATURES
The SPARTA Underground Man Carrier is built with a heavy-duty construction frame and personal capacity of up to 21 people. The standard engine is a Cummins Diesel QSB 4.5 130 HP, Tier 3 w/ Dana 20000 transmission Other features include 4-wheel drive and articulated steer carrier, ABA brake system, audio back up alarm, led lighting and strobe lights, and a 24V electrical system. An enclosed environmental cab for operator and passenger (AC w/ heat), is also available.

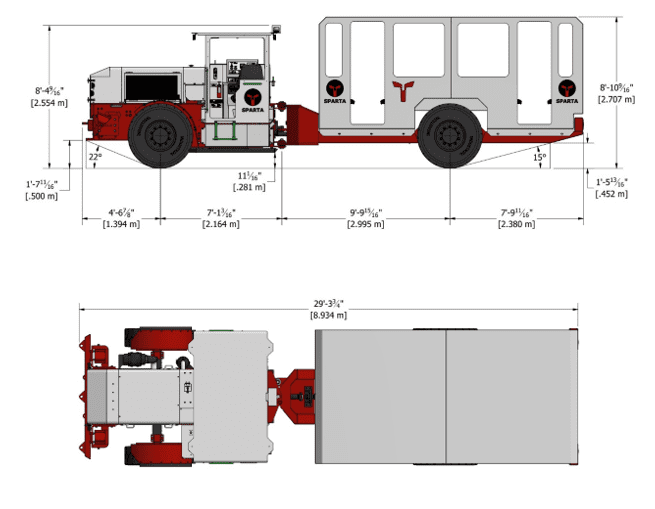

DIMENSIONS

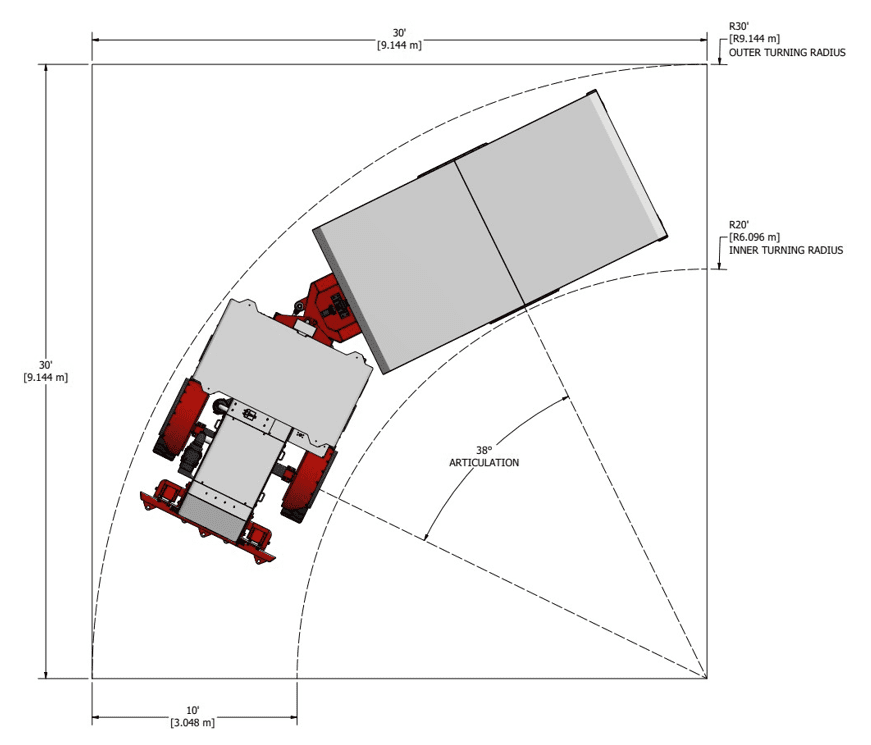

MANEUVERABILITY
TECHNICAL SPECIFICATIONS
| Engine: | Cummins QSB 4.5 Diesel (130 hp), Tier 3 w/ Dana 20000 transmission |
| Mercedes 904 Diesel (148 hp), Tier 3 w/ Dana 20000 transmission | |
| Cummins QSB6.7 Diesel (193 hp), Tier 3 w/ Dana 32000 transmission | |
| Mercedes 906 Diesel (201 hp), Tier 3 w/ Dana 32000 transmission | |
| Transmission: | DANA 20000 series |
| DANA 32000 series | |
| Personnel Capacity: | 19 person + 1 operator + 1 passenger (side exit arrangement) |
| 20 person + 1 operator + 1 passenger (rear exit arrangement) | |
| Axles: | DANA 113 SAHR |
| Empty Weight: | 16,347 kg (36,150 lbs) |
| Fire Suppression System: | Certified ANSUL 4 Nozzle, liquid |
| Tramming Height: | 2.36 m (93″) |
| Width/ Length: | 2.44 m (96″) / 8.31 m (327″) |
| Inside Turning Radius: | 5.72 m (225″) |
| Outside Turning Radius: | 8.63 m (340″) |
| Tires: | 12.00-20 |
| – Pneumatic | |
| – Foam Filled | |
| – Solid | |
| Spare Tire: | – Pneumatic |
| – Foam Filled | |
| – Solid | |
| Electrical: | 24V electrical system |
| ABA brake system | |
| Audio back up alarm | |
| Engine oil pressure switch | |
| LED lighting installed | |
| Lock out on master switch | |
| Strobe light (red, white, blue, amber) | |
| Wheel chocks and brackets | |
| Frame Unit: | Heavy duty construction frame |
| Four wheel drive, articulated steer carrier | |
| Passanger seat | |
| ROPS/ FOPS canopy | |
| Spare tire included | |
| 3 sets of manuals with electronic version | |
| Fire extinguisher | |
| Grounding straps | |
| Options: | Enclosed environmental cab for operator (AC w/ heat) |
| Enclosed environmental cab for passengers (AC w/ heat) | |
| Central lubrication system (Lincoln) | |
| Electric fill pump c/w filters | |
| Wiggins fast fill fuel system | |
| ANSUL “Check fire” with detection system | |
| Air ride seats (Qty 2) | |
| Seat belt warning system | |
| Electric fill pump c/w filters | |
| Hydraulic low level warning light | |
| Exhaust shielding options (Firwin / Mammoth) |
