SPARTA
UG FUEL & LUBE TRUCK
Built for reliability and efficiency underground, the SPARTA Fuel & Lube Truck delivers essential maintenance support where it’s needed most. With heavy-duty construction, customizable tank configurations, and integrated safety systems, this truck keeps your operation running smoothly and reduces downtime. Like all SPARTA designs, it’s engineered to perform in the toughest mining conditions.
UNDERGROUND FUEL & LUBE TRUCK FEATURES
The UG Fuel & Lube Truck is built with a heavy-duty articulated frame and designed for reliable underground performance. It features a Volvo Tier 3 engine with a DANA 32000 series transmission, four-wheel drive, and a tramming height of 2.56 meters. The unit includes one large oil tank and three medium-capacity tanks with customizable capacities, along with a grease barrel mount and five hose reels for efficient service delivery. Additional features include an ANSUL 4-nozzle fire suppression system, ROPS/FOPS canopy, LED lighting, audio backup alarm, ABA brake system, and a 24V electrical system.

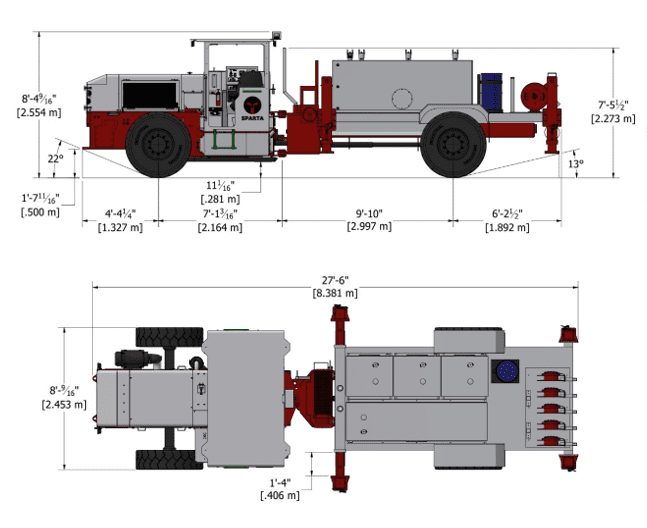

DIMENSIONS

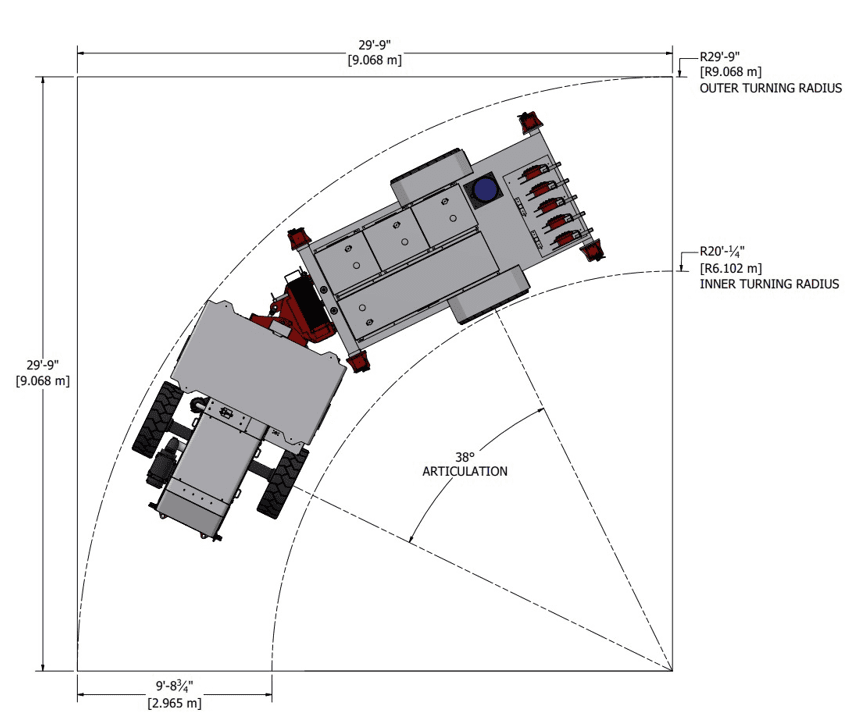

MANEUVERABILITY

TECHNICAL SPECIFICATIONS
ITEM | SPECIFICATIONS |
Engine: | Volvo Tier 3 |
Transmission: | DANA 32000 series |
Axles: | Spring Applied Hydraulic Release (SAHR) |
Empty Weight: | 10,432 kg (23,000 lbs.) |
Tramming Height: | 2.56 m (101″) |
Width/Length: | 2.46 m (97″) / 7.94 m (313″) |
Inside Turning Radius: | 6.1 m (240″) |
Outside Turning radius: | 9.06 m (357″) |
Tires: | 12.00-20 (Pneumatic) |
Electrical: | 24V Electrical System |
ABA Brake System | |
Audio Back Up Alarm | |
Engine Oil Pressure Switch | |
LED Lighting Installed | |
Lock Out on Master Switch | |
Strobe Light (White Included) | |
Frame Unit: | Heavy Duty Construction Frame |
Four Wheel Drive, Articulated Steer Carrier | |
ROPS/FOPS Canopy | |
One Suspension Seat | |
Fuel & Lube | 1-Large oil tank (Capacity as per customer request) |
3-Medium capacity tanks (Capacity as per customer request) | |
Grease barrel mount and delivery system | |
5-Hose reels | |
Fire Suppression: | Certified ANSUL 4 Nozzle |
Other: | 1 Electronic Version Manual |
Fire Extinguisher 20 lbs. |
