MINEREACH PERSONNEL CARRIER
Compact Underground Multi-Function Utility Vehicle (CUMV)
The MineReach Personnel Carrier offers safe, comfortable transport for crews working underground. With a low tramming height of 2.47 m and articulated steering, it navigates narrow headings with ease. Built on the MineReach chassis, it delivers smooth handling, reduced noise, and the proven dependability of SPARTA-based engineering.
MINEREACH FACE PREP FEATURES
Featuring a ROPS/FOPS-certified canopy, ergonomic seating for up to six passengers, and SAHR brakes, the Personnel Carrier keeps workers protected and productive. Ground-level maintenance points and shared electrical systems make servicing quick and efficient, keeping mines on schedule with less downtime.

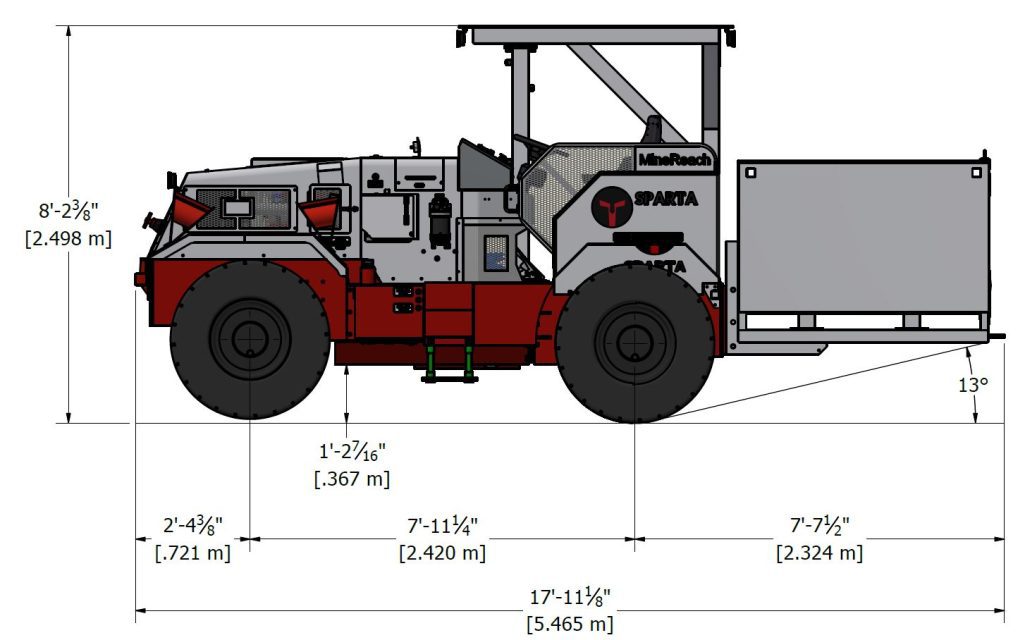

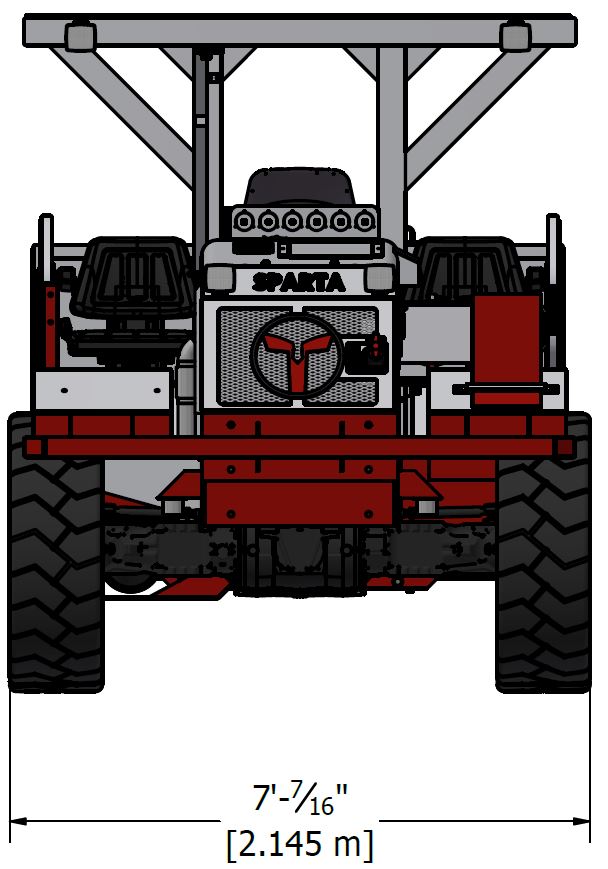

DIMENSIONS

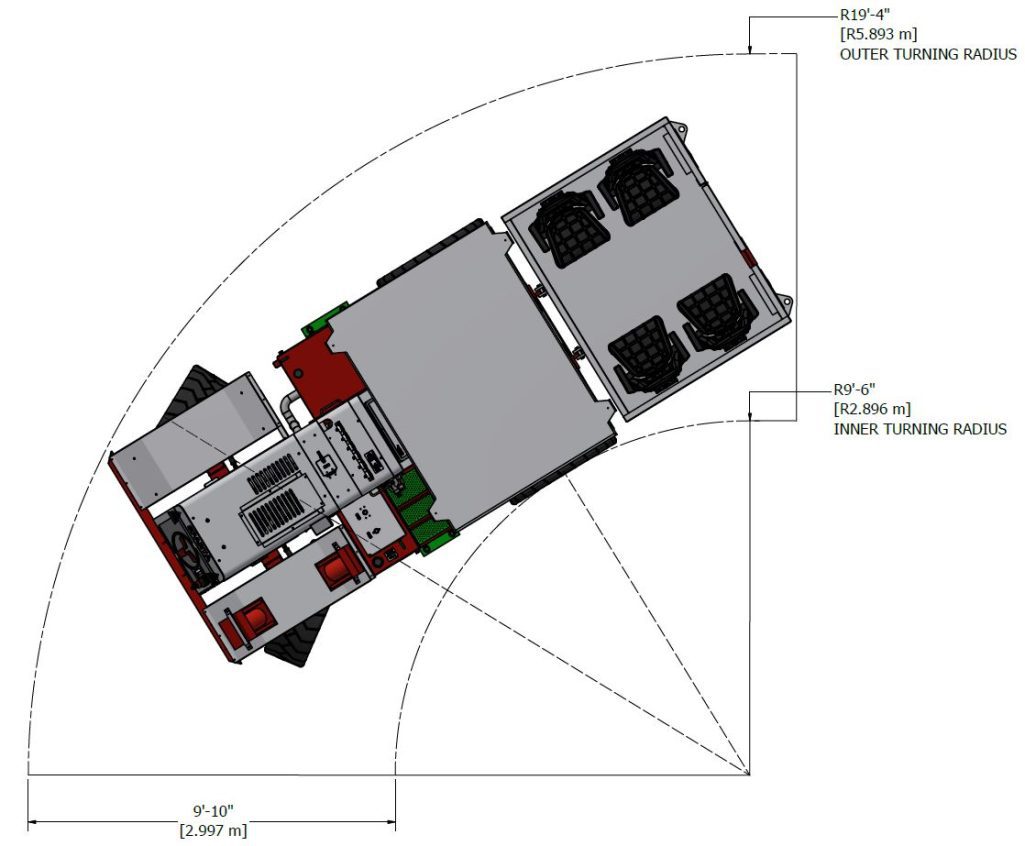

MANEUVERABILITY
TECHNICAL SPECIFICATIONS
| ITEM | SPECIFICATIONS | |
| Engine: | Cummins QSF 3.8L Tier 3 (125hp) | |
| Transmission: | Carraro TCB90 | |
| Axles: | Spring Applied Hydraulic Release (SAHR) | |
| Empty Weight: | 6,350 kg (14,000 lbs.) | |
| Tramming Height: | 2.473 m (98″) | |
| Width/ Length: | 2.15 m (84-1/2″) / 5.5 m (217″) | |
| Inside Turning Radius: | 2.89 m (114″) | |
| Outside Turning Radius: | 5.89 m (232″) | |
| Tires: | 340/80 R18 (Pneumatic) | |
| Electrical: | 24V electrical system | |
| ABA brake system | ||
| Audio back up alarm | ||
| Engine oil pressure switch | ||
| LED lighting installed | ||
| Lock out on master switch | ||
| Frame Unit: | Heavy duty construction frame | |
| Four-wheel drive | ||
| ROPS/ FOPS canopy | ||
| Fire extinguisher | ||
| One suspension seat | ||
| 6-person man carrier | ||
| Other: | 1 electronic version manual | |
