MINEREACH MECHANICAL SERVICES VEHICLE
Compact Underground Multi-Function Utility Vehicle (CUMV)
The MineReach Mechanical Service Vehicle is a compact, articulated platform designed to support underground maintenance and repair work where space and access are limited. It combines proven SPARTA drivetrain components with the low-profile MineReach chassis to deliver reliable power, maneuverability, and service access. Built in Sudbury, Ontario, and fully ROPS/FOPS-certified, it provides the reach, stability, and safety needed to keep equipment and infrastructure running efficiently underground.
MINEREACH FACE PREP FEATURES
The MineReach Mechanical Service Vehicle provides a safe, efficient platform for on-site maintenance, repair, and support in narrow headings. Powered by a Cummins QSF 3.8 L Tier 3 engine and Carraro TCB90 transmission, it delivers dependable torque and control through a compact, articulated four-wheel-drive chassis. The 2.47 m tramming height and 2.15 m width allow easy access through restricted headings, while the ROPS/FOPS canopy and SAHR braking system ensure compliance and operator protection. With two-person seating, integrated tool storage options, and clear sightlines, the unit supports quick service interventions with minimal disruption to production. LED lighting, ground-level maintenance points, and fire suppression simplify daily operation and improve uptime. The result is a durable, Canadian-built service vehicle that keeps mine operations running safely and efficiently every shift.

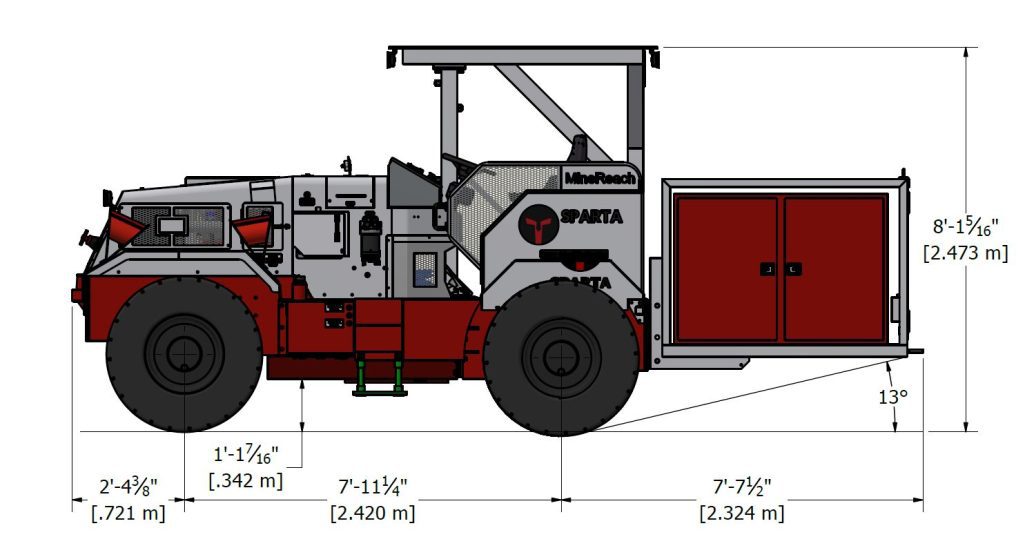

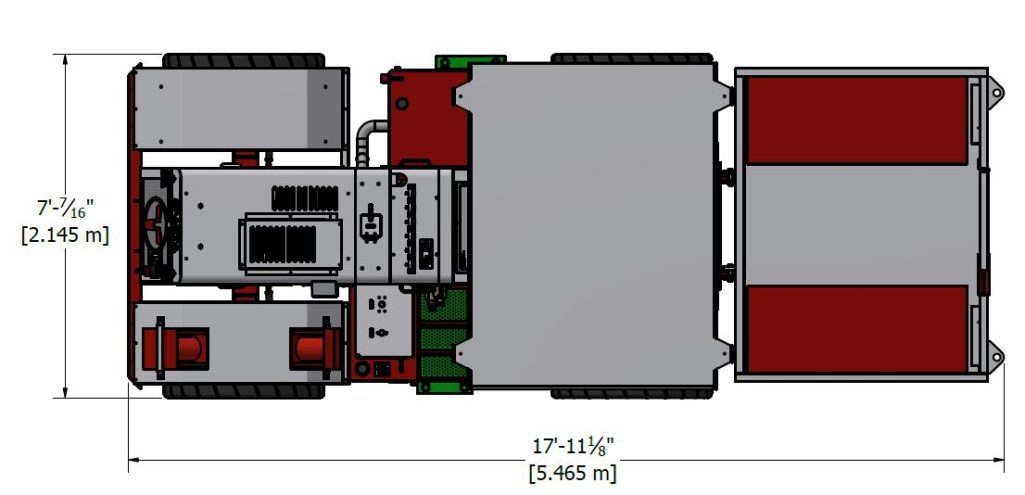

DIMENSIONS

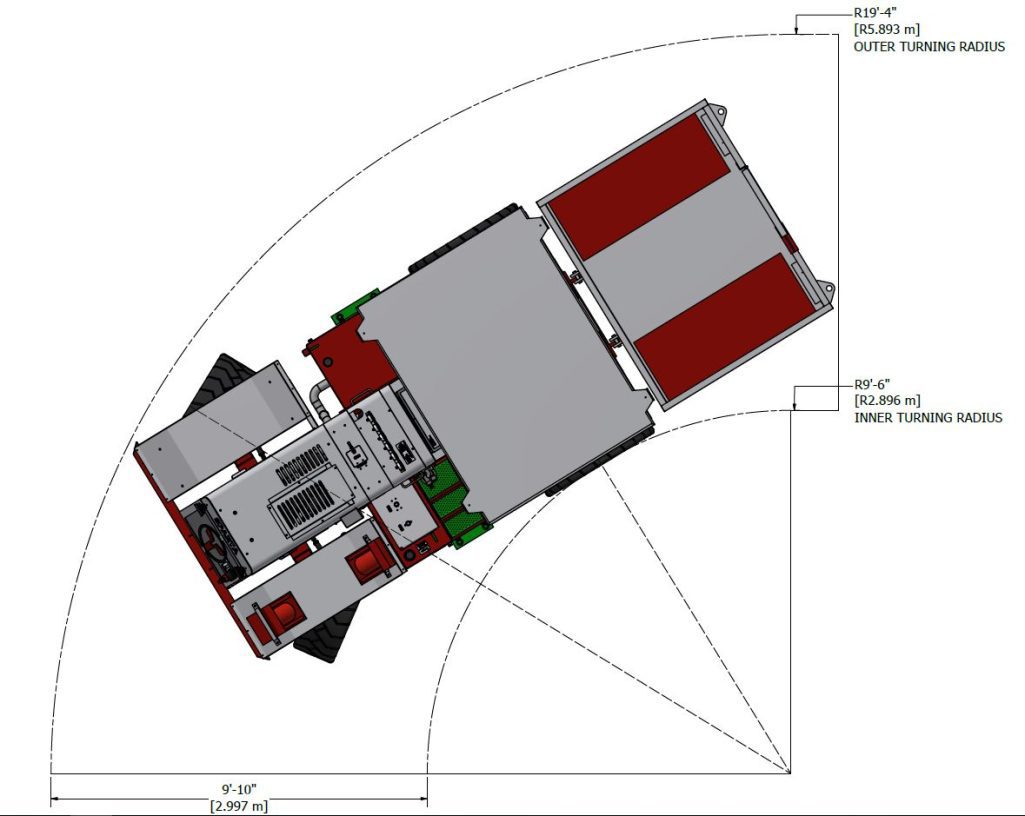

MANEUVERABILITY
TECHNICAL SPECIFICATIONS
| ITEM | SPECIFICATIONS | |
| Engine: | Cummins QSF 3.8L Tier 3 (125hp) | |
| Transmission: | Carraro TCB90 | |
| Axles: | Spring Applied Hydraulic Release (SAHR) | |
| Empty Weight: | 6,577 kg (14,500 lbs.) | |
| Tramming Height: | 2.473 m (98″) | |
| Width/ Length: | 2.15 m (82-1/2″) / 5.5 m (217″) | |
| Inside Turning Radius: | 2.89 m (114″) | |
| Outside Turning Radius: | 5.89 m (232″) | |
| Tires: | 340/80 R18 (Pneumatic) | |
| Electrical: | 24V electrical system | |
| ABA brake system | ||
| Audio back up alarm | ||
| Engine oil pressure switch | ||
| LED lighting installed | ||
| Lock out on master switch | ||
| Frame Unit: | Heavy duty construction frame | |
| Four-wheel drive | ||
| ROPS/ FOPS canopy | ||
| Fire extinguisher | ||
| One suspension seat | ||
| 2-person man carrier | ||
| Other: | 1 electronic version manual | |
