MINEREACH COUNTER WEIGHT WITH BOOM
Compact Underground Multi-Function Utility Vehicle (CUMV)
The MineReach Counterweight / Boom Model is purpose-built for lifting and installation tasks that require maximum stability and precise handling in confined underground spaces. Integrating a single-stage telescopic boom with a reinforced counterweight system, it delivers balanced lifting performance without sacrificing maneuverability. Built on TES Inc.’s proven MineReach chassis, this model combines strength, safety, and visibility in one compact, compliant platform, ideal for face work, utility installation, and maintenance in headings under 2.5 m.
MINEREACH FACE PREP FEATURES
The MineReach Counterweight / Boom Model provides reliable lifting performance in tight underground environments where space and balance are critical. Powered by a Cummins QSF 3.8 L Tier 3 engine and Carraro TCB90 transmission, it offers controlled, consistent power through a four-wheel-drive articulated frame. The single-stage telescopic boom delivers a 2.24 m reach and 5,000 lb (2,268 kg) lift capacity, supported by a counterweight system that enhances stability at full extension. Safety is built in through a ROPS/FOPS-certified canopy, SAHR braking, and integrated fire suppression. LED lighting, audio alarms, and lock-out controls ensure operator confidence in low-visibility conditions. With ground-level service access and a compact 2.47 m tramming height, the Counterweight / Boom Model delivers exceptional strength, safety, and maneuverability, demonstrating TES Inc.’s commitment to Canadian-built performance that keeps your mine moving.

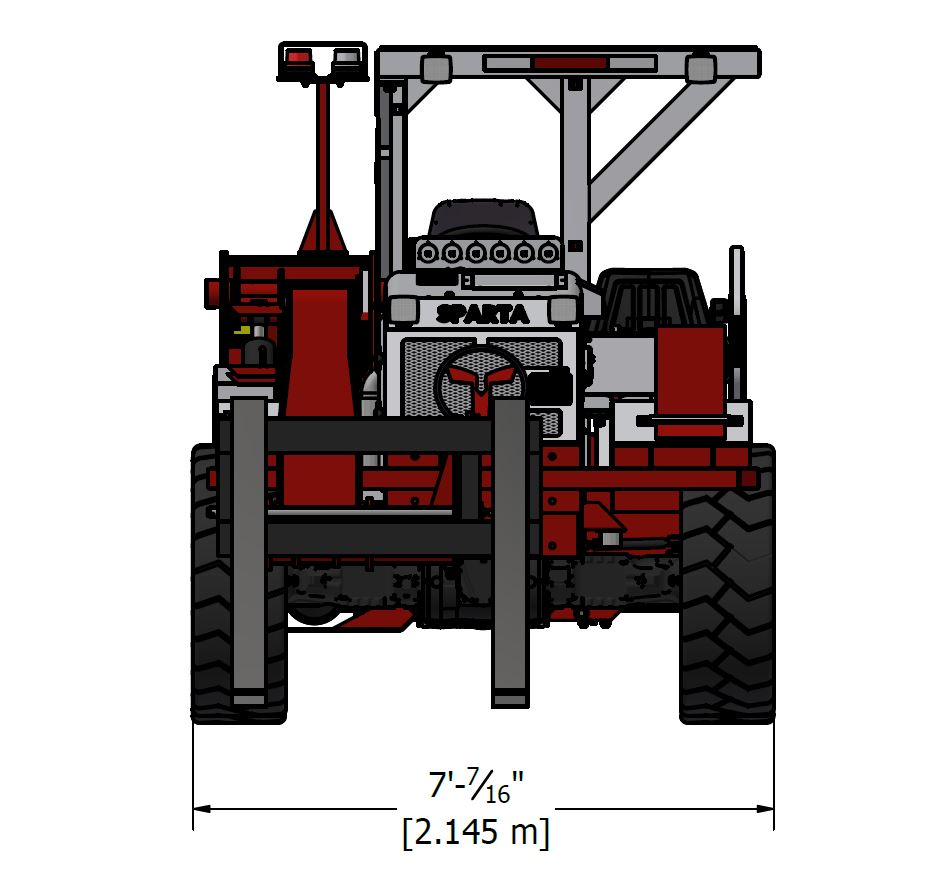

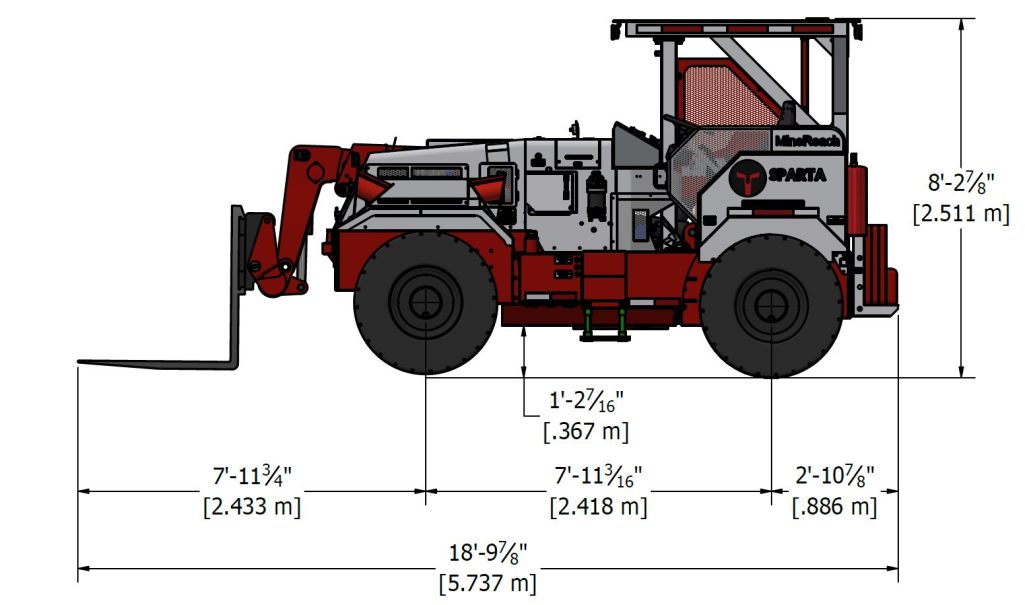

DIMENSIONS

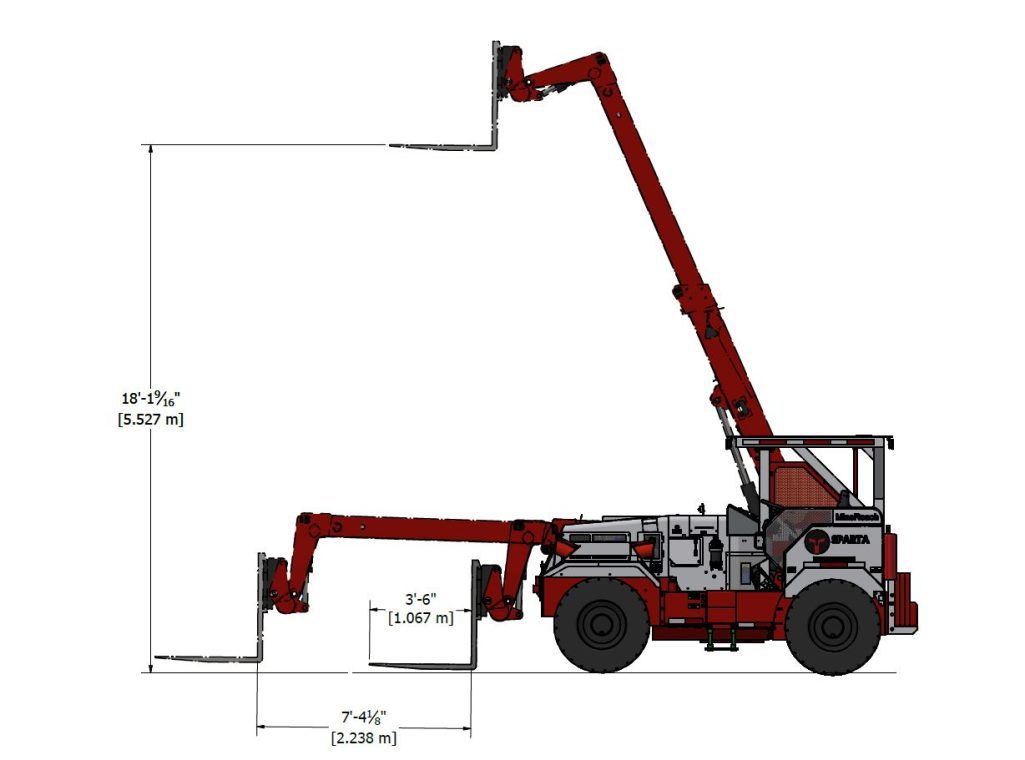

MANEUVERABILITY
TECHNICAL SPECIFICATIONS
| ITEM | SPECIFICATIONS |
| Engine: | Cummins QSF 3.8L Tier 3 (125 hp) |
| Transmission: | Carraro TCB90 |
| Axles: | Spring Applied Hydraulic Release (SAHR) |
| Empty Weight: | 8,200 kg (18,000 lbs.) |
| Tramming Height: | 2.473 m (98″) |
| Width/ Length: | 2.15 m (82-1/2″) / 6.9m (272″) |
| Inside Turning Radius: | 2.89 m (114″) |
| Outside Turning Radius: | 6.96 m (247″) |
| Tires: | 340/80 R18 (Pneumatic) |
| Electrical: | 24V electrical system |
| ABA brake system | |
| Audio back up alarm | |
| Engine oil pressure switch | |
| LED lighting installed | |
| Lock out on master switch | |
| Frame Unit: | Heavy duty construction frame |
| Four-wheel drive | |
| ROPS/ FOPS canopy | |
| Fire extinguisher | |
| One suspension seat | |
| Front stabilizers | |
| One-person man carrier | |
| Other: | 1 electronic version manual |
| Telescopic Boom: | Single stage telescopic boom with man basket |
| Arm extension 2.24 m. | |
| Arm lift: + 68° / – 3° | |
| Self-Leveling Basket Capacity: 2 Person/ 1000lbs (453.5kg) | |
