MINEREACH FACE PREP
Compact Underground Multi-Function Utility Vehicle (CUMV)
The MineReach Face Prep unit combines lift reach, stability, and underground compliance in one compact platform. Designed for safe and efficient face preparation, installation, and service work in headings under 2.5 m, it delivers the strength of a telehandler with the maneuverability of an articulated utility vehicle. Built in Sudbury, Ontario, this model reflects TES Inc.’s engineering focus on reliability, safety, and lifetime value, helping mines reduce fleet size, lower ventilation demand, and improve daily productivity.
MINEREACH FACE PREP FEATURES
The MineReach Face Prep is designed for safe, versatile performance in confined underground environments. Powered by a Cummins QSF 3.8 L Tier 3 engine and Carraro TCB90 transmission, it combines proven drivetrain reliability with precise control and a compact 2.47 m tramming height. The single-stage telescopic boom with flip-up forks provides a 2.24 m reach and 5,000 lb lift capacity, while the integrated backhoe delivers a 2.67 m digging depth and 180° swing for face preparation and service work. Operator protection is ensured through a ROPS/FOPS-certified canopy, SAHR braking, and onboard fire suppression. With ground-level maintenance access, LED lighting, and a lock-out master switch, the unit is built for efficiency and safety. Its articulated frame and 2.89 m inner turning radius provide excellent maneuverability, making the Face Prep a dependable, Canadian-built solution for daily underground operations.

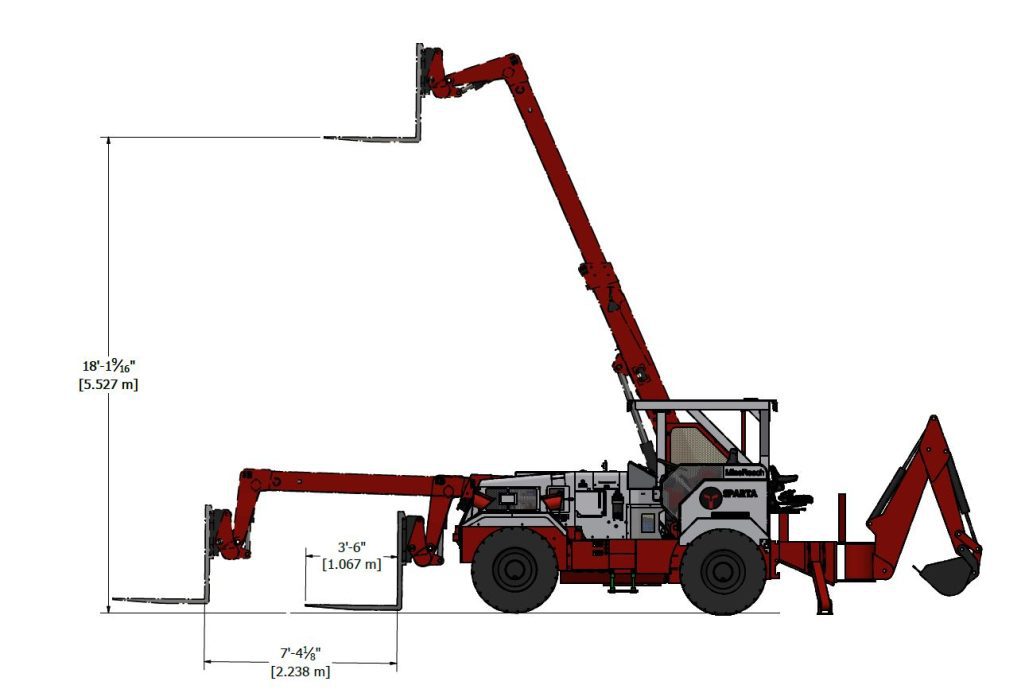

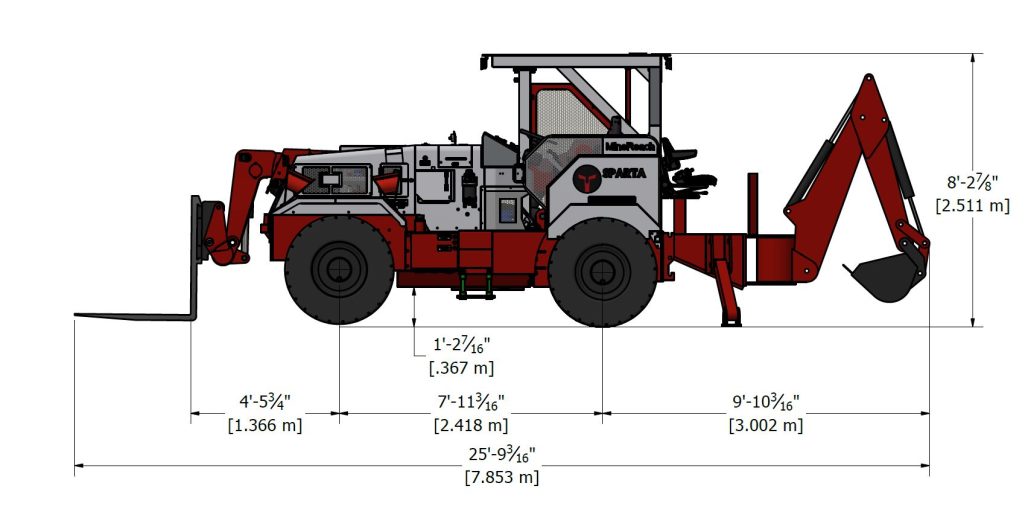

DIMENSIONS

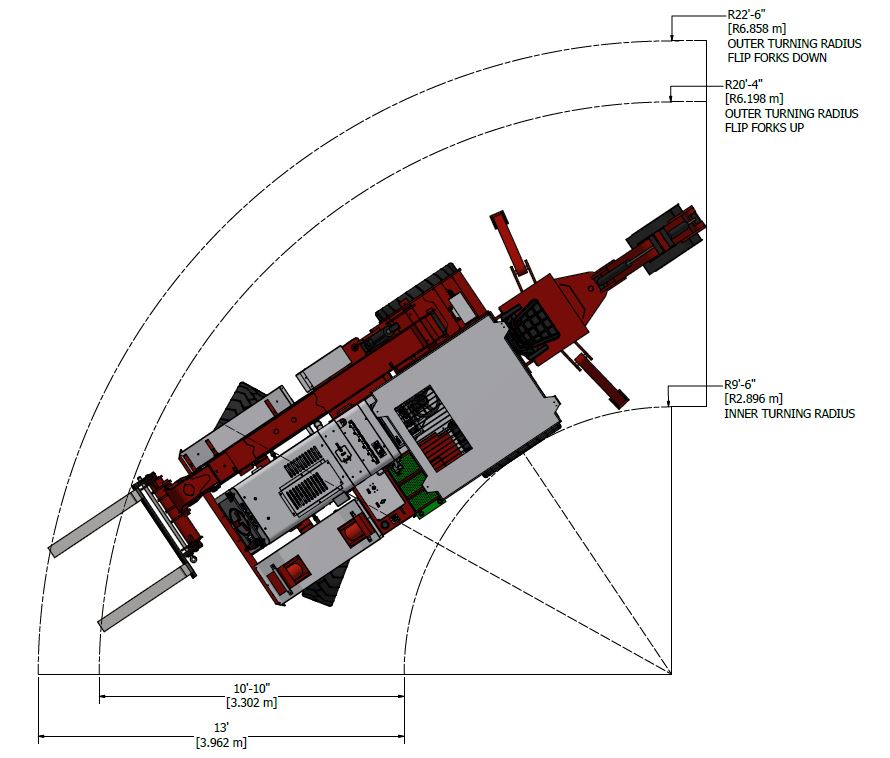

MANEUVERABILITY
TECHNICAL SPECIFICATIONS
| ITEM | SPECIFICATIONS |
| Engine: | Cummins QSF 3,8L Tier 3 (125hp) |
| Transmission: | Carraro TCB90 |
| Axles: | Spring Applied Hydraulic Release (SAHR) |
| Empty Weight: | 8 620 kg (19,000 lbs.) |
| Tramming Height: | 2.473 m (98″) |
| Width/ Length: | 2.15 m (82-1/2″) / 6.9m (272″) |
| Inside Turning Radius: | 2.89 m (114″) |
| Outside Turning Radius: | 6.19 m (244″) |
| Outside Turning Radius (Forks Down): | 6.85 m (270) |
| Tires: | 340/80 R18 (Pneumatic) |
| Electrical: | 24V electrical system |
| ABA brake system | |
| Audio back up alarm | |
| Engine oil pressure switch | |
| LED lighting installed | |
| Lock out on master switch | |
| Frame Unit: | Heavy duty construction frame |
| Four-wheel drive | |
| ROPS/ FOPS canopy | |
| Fire extinguisher | |
| Grounding straps throughout frame | |
| One suspension seat | |
| One Passenger Seat | |
| Other: | 1 electronic version manual |
| Telescopic Boom: | Single stage telescopic boom with flip up forks |
| Arm extension 2.24 m (Approx.) | |
| Arm lift + 68 ° / -3 °(Approx.) | |
| Max capacity: 2268 kg (5000 lbs.) (Approx.) | |
| Self-Leveling | |
| Backhoe | Boom lift capacity: 372 kg (820 lbs.) |
| Digging depth: 2.67 m (8’ 9”) | |
| Reach from centerline of boom pivot: 3.61 m (11’ 10”) | |
| Loading reach: 1.17 m (3’ 10”) | |
| Swing arc: 180° | |
