UTM6

SPARTA UNDERGROUND TRANSMIXER

Our SPARTA heavy duty underground transmixer has been designed with safety in mind to meet the needs of the underground mining industry. The SPARTA UTM4.5 has been manufactured for superior maneuverability in the transportation of concrete in tight places and is suited to a tramming height of 2.57 m (101.3”). Our SPARTA transmixers feature customizable drum sizes and powerful engines to support your specific transporting needs.

Interested in underground mining equipment, parts, or services?

UNDERGROUND TRANSMIXER FEATURES

The SPARTA Transmixer 6 is built with a heavy-duty construction frame, an inside turning radius of 5.75 m (226”) and an outside turn radius of 8.63 m (340”). It features a Cummins Diesel QSB4.5 130 HP at 2200 RPM engine, with a width of 2.48 meters (98”) and a length of 9.06 meters (365.7”). The SPARTA Transmixer 6 includes a remixer drum hydraulic tilt, pendent controls, bi-directional drum rotation, internal drum flutes, and overloading hatch. Other features include, 4-wheel drive, ABA brake system, and 24V electrical system.

DIMENSIONS

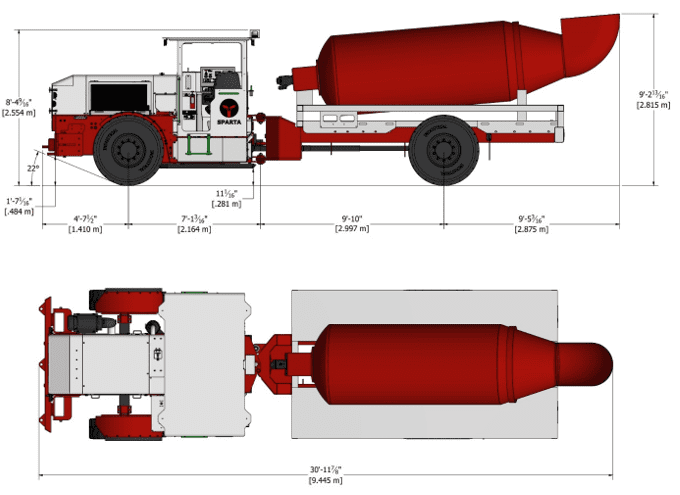

Underground Transmixer Dimensions

MANEUVERABILITY

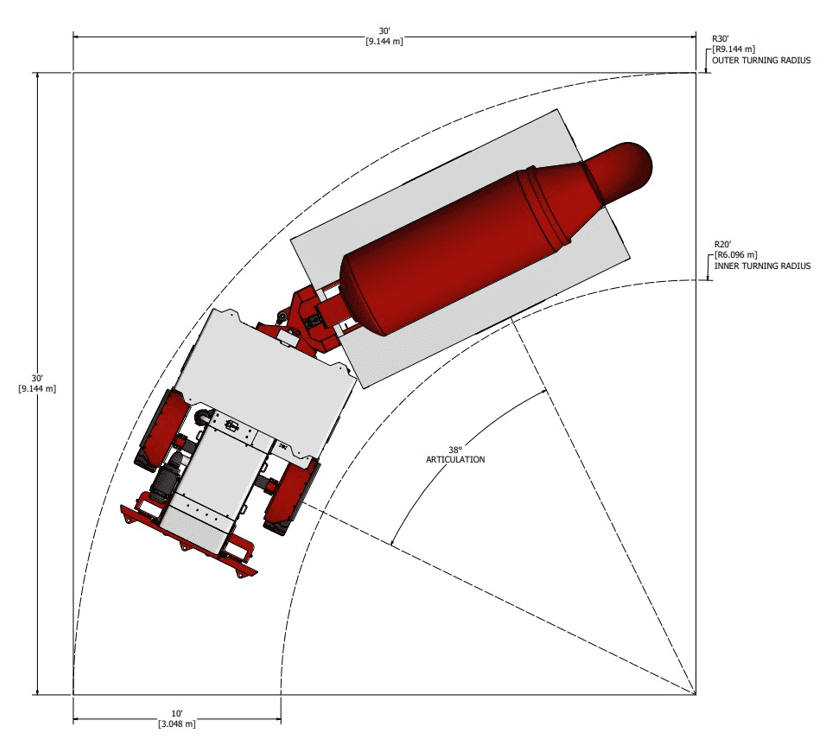

Underground Transmixer Maneuverability

Interested in underground mining equipment, parts, or services?

TECHNICAL SPECIFICATIONS

Engine:Cummins QSB 6.7 Diesel (193 hp), Tier 3
Transmission:DANA 32000 series
Axles:DANA 113 SAHR
Empty Weight:Aprox.16,272 kg (36,850 lbs)
Tramming Height:Aprox. 2.57 m (101.3″)
Width/ Length:2.48 m (98′) / 9.06 m (356.7″)
Inside Turning Radius:5.75 m (226″)
Outside Turning Radius:8.63 m (340″)
Tires:10.00-20 (Pneumatic)
Electrical:24V electrical system
ABA brake system
Audio back up alarm
Engine oil pressure switch
LED lighting installed (4 front + 2 rear + 2 reverse)
Lock out on master switch
Strobe light (white) Options: red, blue, amber
Frame Unit:Heavy duty construction frame
Four wheel drive, articulated steer carrier
ROPS/ FOPS canopy
Spare tire included
One suspension seat, and one mechanical seat
Wheel chocks and brackets
Transmixer Drum:6.0 M3 Steel Drum with 2 rows of agitating fins fabricated using ¼’’ AR200 steel
One large round style door manually actuated
One manually actuated discharge door
Front and rear support pedestals
Two main drum rollers
Strap style de-bouncer system
Non-tilting style subframe
Hydraulic planetary gearbox and motor (pump and oil reservoir not included)
Heavy sub frame capable of supporting the entire mixing system loaded. (includes lifting cylinders)
Performance Criteria:Drum Capacity = 6.0 m3 Agitating
Discharge Rate = 0-3 m3 per minute
Rotations/Minute = 0-14 in either direction
Fire Suppression: Certified ANSUL 4 Nozzle (liquid)
Other:3 sets of manuals with electronic version
Fire extinguisher
Vehicle Speed:1st Gear -0-5km/h  2nd Gear- 0-10 km/h (running speed, ground level)
Options:Enclosed environmental cab (AC and heater system)
Central lubrication system (Lincoln)
Wiggins fast fill fuel system
ANSUL “Check fire” with detection system
Replace large round manual load door with 2’x4’ door with lift assist
Replace strap style debouncer system with roller style
Replace manual discharge door with a hydraulically actuated discharge door
Air ride seats (qty 2)
Seat belt warning system
 Diesel engine Mercedes Benz 906 – 201 HP
